Sleeve Gearbox
SG-1525
Sleeve Gearbox SG-1525
- Ratio
- 1:2.27
- Rated power
- 75 HP
- Teeth
- 11/25
- Weight
- 58–64 kg
8-spline sleeve input for direct implement shaft mounting.
Technical information
| Item | SG-1525 |
|---|---|
| Ratio | 1:2.27, 1:1.67 |
| Teeth | 11/25, 15/25 |
| Module | 8.5 |
| Power (HP) | 75 |
| Rated input | 540 RPM |
| Input / output description | 1 3/4" Z10 |
| Weight (N.W.) | 58–64 kg |
Application
Splined sleeve-input gear units for direct implement shaft mounting.
All gear units are supplied with quenched gears and shafts for high surface hardness, quality oil seals and bearings, and spheroidal graphite iron housings for low noise and vibration. Every unit is inspected on our gearbox testing rig before despatch.

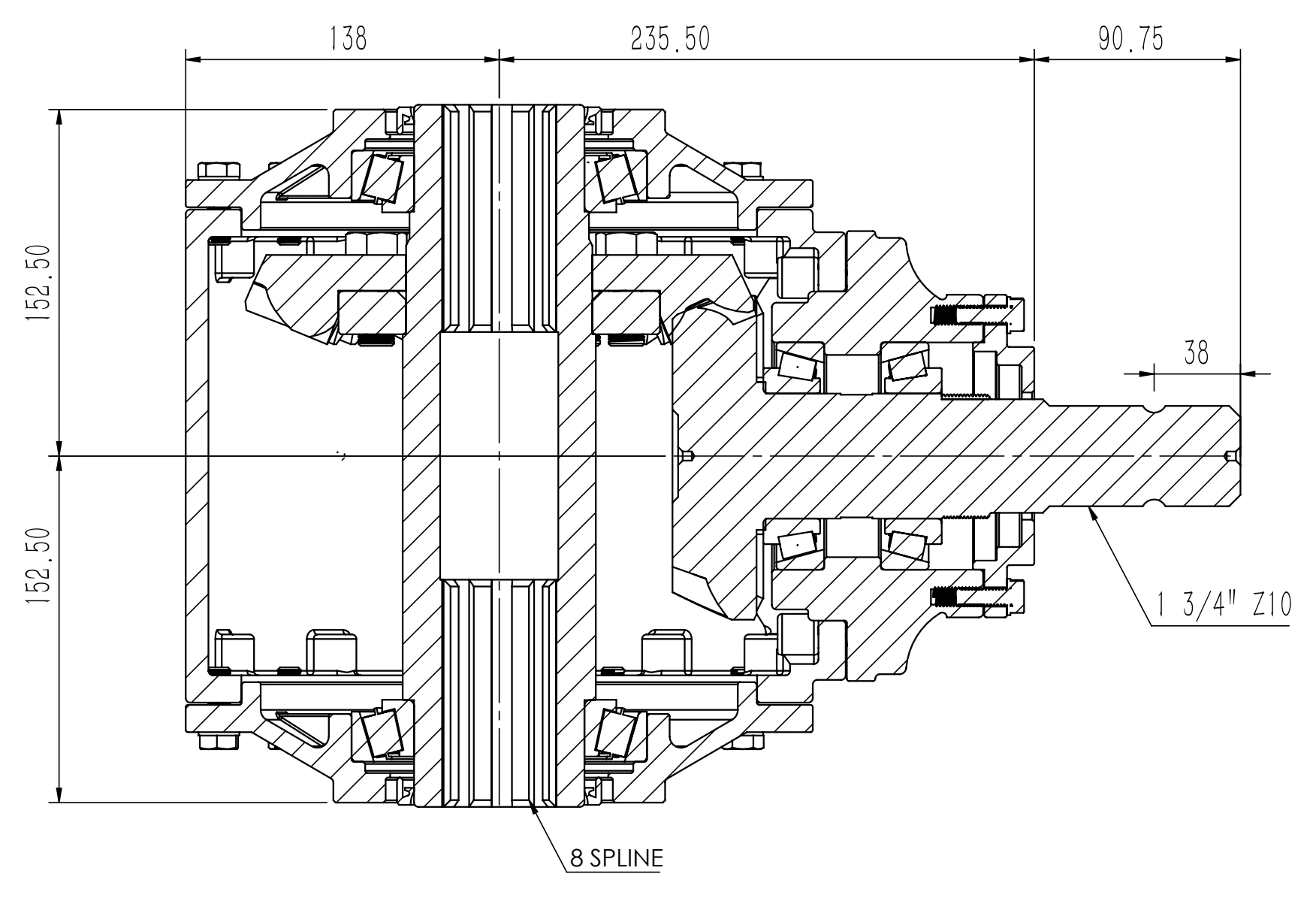

Cross-section shown for reference. Dimensions in millimetres. Not to scale when viewed on screen.
