Rotary Tiller (Rotavator)
RTG-1325 MS
Multi-Speed Rotary Tiller Gearbox RTG-1325 MS
- Ratio
- 1:1.92
- Rated power
- 45 HP
- Teeth
- 13/25
- Weight
- 53–61 kg
Reduction gear sets of 17x19, 16x20, 15x21 available as an option in multi-speed gearboxes.
Weight range shown corresponds to different gearbox lengths.
Technical information
| Item | RTG-1325 MS |
|---|---|
| Ratio | 1:1.92 |
| Teeth | 13/25 |
| Module | 6 |
| Power (HP) | 45 |
| Rated input | 540 RPM |
| Input / output description | 1 3/8" Z6 |
| Weight (N.W.) | 53–61 kg |
Application
Central drive gearboxes for rotavators and rotary tillers, in single and multi-speed configurations, with reduction gear sets available to order.
All gear units are supplied with quenched gears and shafts for high surface hardness, quality oil seals and bearings, and spheroidal graphite iron housings for low noise and vibration. Every unit is inspected on our gearbox testing rig before despatch.

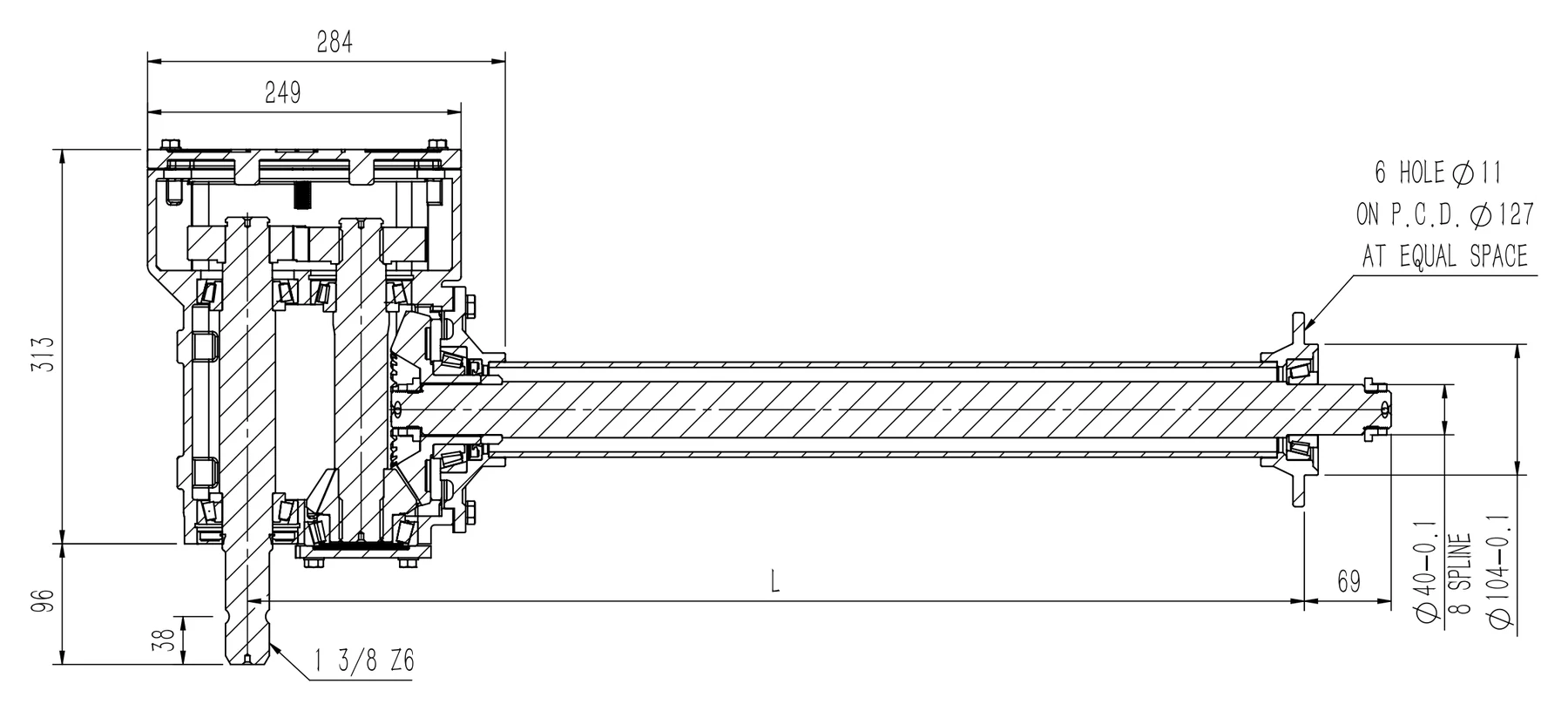

Cross-section shown for reference. Dimensions in millimetres. Not to scale when viewed on screen.
G.S Agro Pvt. Ltd. · Dhola Road, Dhuri-148024, Dist. Sangrur, Punjab, India · +91 98153 91389 ·
sales@gsagroindustries.com · www.gsagroindustries.com ·
ISO 9001:2015 (cert. 305024010911Q) ·
Technical data indicative and subject to change without notice.
