Rotary Tiller (Rotavator)
RT-1116
Mini Rotary Tiller Gearbox RT-1116
- Ratio
- 1:1.45
- Rated power
- 30 HP
- Teeth
- 11/16
- Weight
- 25 kg
Reduction gear sets of 16x19 / 17x18 / 15x20 / 13x22 / 12x23 available as an option in multi-speed gearboxes.
Technical information
| Item | RT-1116 |
|---|---|
| Ratio | 1:1.45 |
| Teeth | 11/16 |
| Module | 5.5 |
| Power (HP) | 30 |
| Rated input | 540 RPM |
| Input / output description | 1 3/8" Z6 |
| Weight (N.W.) | 25 kg |
Application
Central drive gearboxes for rotavators and rotary tillers, in single and multi-speed configurations, with reduction gear sets available to order.
All gear units are supplied with quenched gears and shafts for high surface hardness, quality oil seals and bearings, and spheroidal graphite iron housings for low noise and vibration. Every unit is inspected on our gearbox testing rig before despatch.

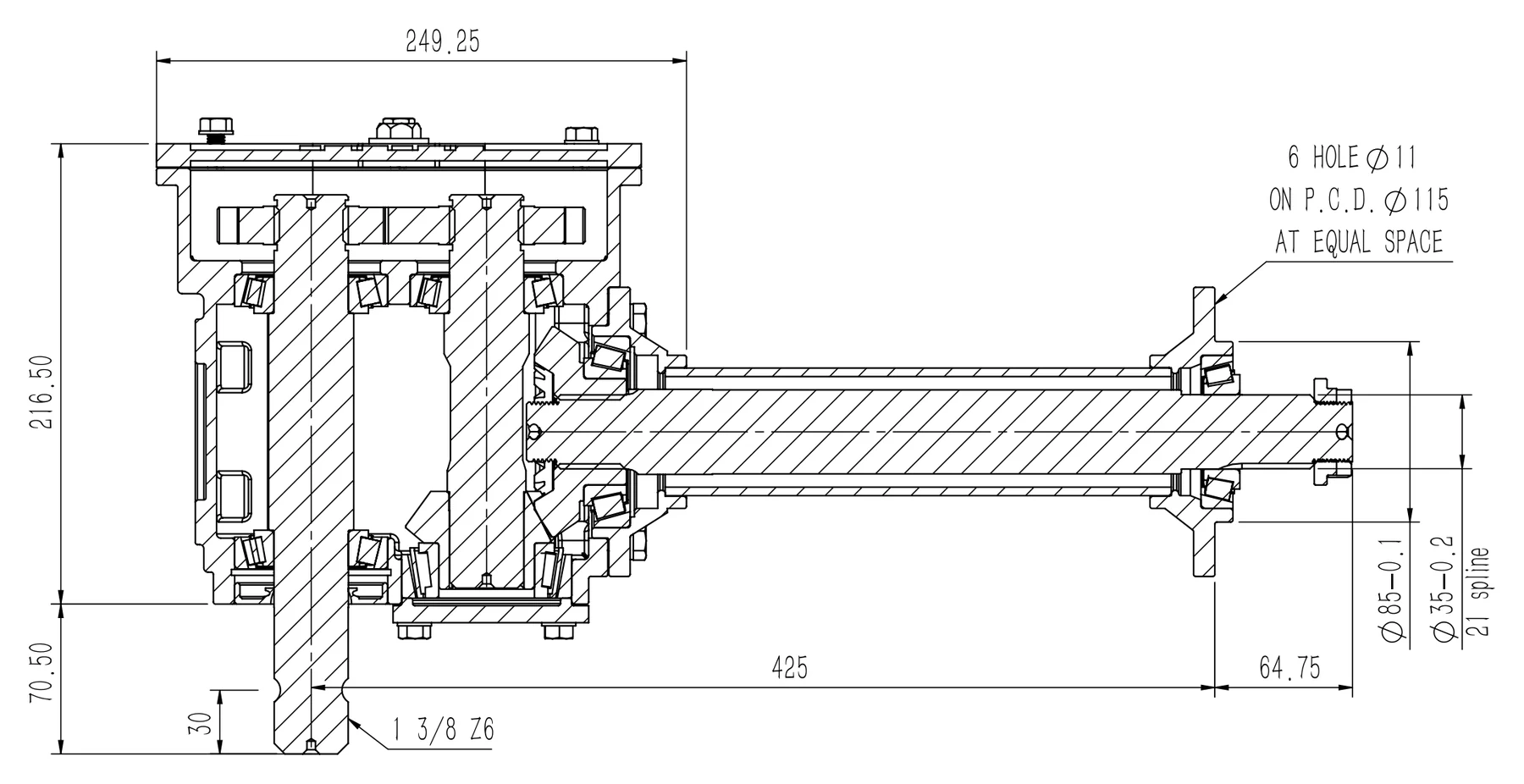

Cross-section shown for reference. Dimensions in millimetres. Not to scale when viewed on screen.
