Post Hole Digger Gearbox
PHO-1126
Post Hole Digger Gearbox PHO-1126
- Ratio
- 1:2.36
- Rated power
- 55 HP
- Teeth
- 11/26
- Weight
- 49 kg
Technical information
| Item | PHO-1126 |
|---|---|
| Ratio | 1:2.36 |
| Teeth | 11/26 |
| Module | 7 |
| Power (HP) | 55 |
| Rated input | 540 RPM |
| Input / output description | 1 3/8" Z6 |
| Weight (N.W.) | 49 kg |
Application
High-ratio auger drives for post hole diggers and earth augers.
All gear units are supplied with quenched gears and shafts for high surface hardness, quality oil seals and bearings, and spheroidal graphite iron housings for low noise and vibration. Every unit is inspected on our gearbox testing rig before despatch.

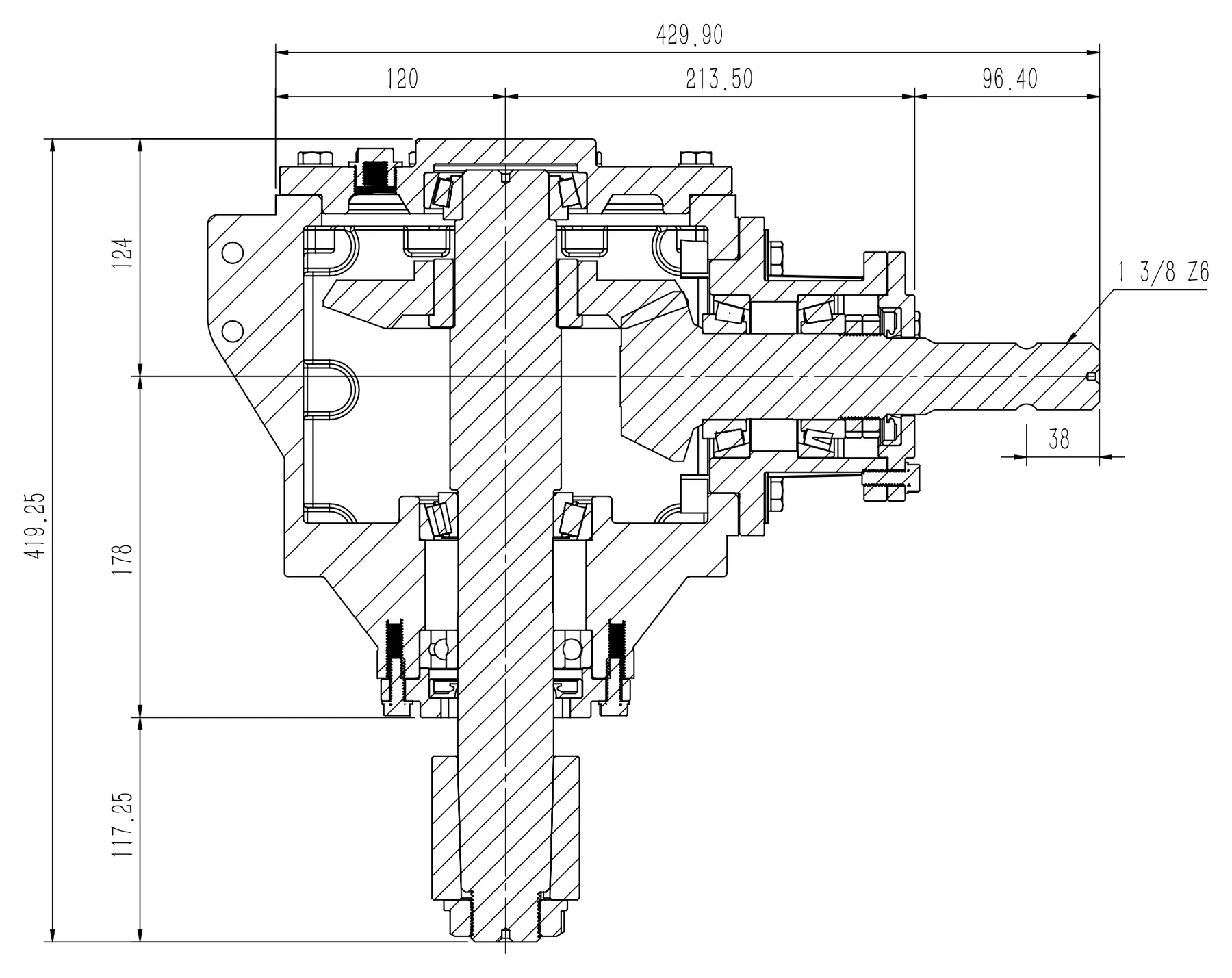

Cross-section shown for reference. Dimensions in millimetres. Not to scale when viewed on screen.
