Mulcher Gearbox
ML-1236
Mulcher Gearbox ML-1236
- Ratio
- 1:3
- Rated power
- 75 HP
- Teeth
- 12/36
- Weight
- 34–50 kg
Weight range shown corresponds to different gearbox lengths.
Technical information
| Item | ML-1236 |
|---|---|
| Ratio | 1:3, 1:3.1 |
| Teeth | 12/36, 11/34 |
| Module | 4.35, 5 |
| Power (HP) | 45 / 75 |
| Rated input | 540 RPM |
| Input / output description | 1 3/8" Z6 |
| Weight (N.W.) | 34–50 kg |
Application
High-reduction mulcher and shredder drives for flail and hammer-type implements.
All gear units are supplied with quenched gears and shafts for high surface hardness, quality oil seals and bearings, and spheroidal graphite iron housings for low noise and vibration. Every unit is inspected on our gearbox testing rig before despatch.

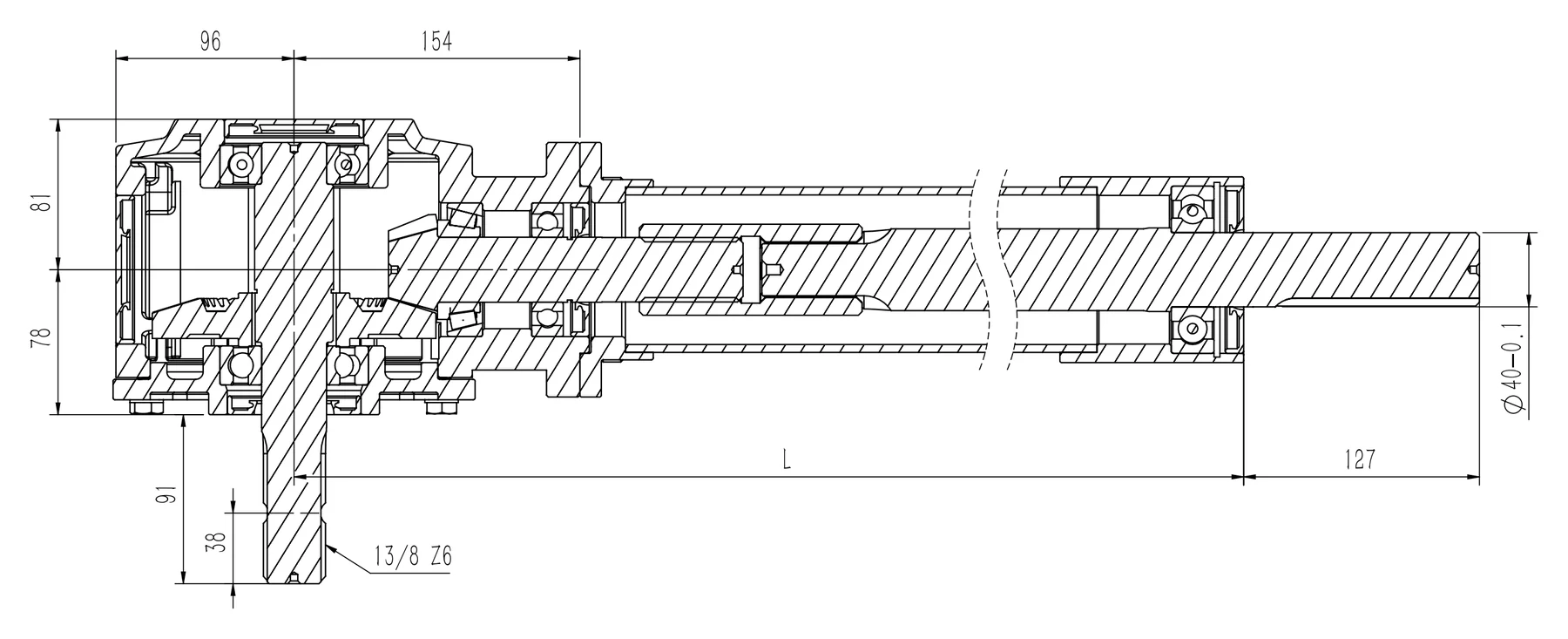

Cross-section shown for reference. Dimensions in millimetres. Not to scale when viewed on screen.
Related gear units
Others in this family
G.S Agro Pvt. Ltd. · Dhola Road, Dhuri-148024, Dist. Sangrur, Punjab, India · +91 98153 91389 ·
sales@gsagroindustries.com · www.gsagroindustries.com ·
ISO 9001:2015 (cert. 305024010911Q) ·
Technical data indicative and subject to change without notice.
Talk to our engineers
Tell us the implement. We’ll specify the gearbox.
Send us the implement type, tractor PTO power and the output you need. If nothing in the standard range fits, we design and build to specification, as we have for OEMs for five decades.
