Manure Spreader Gearbox
FS-10
Manure Spreader Gearbox FS-10
- Ratio
- 1:1.82
- Rated power
- 55 HP
- Teeth
- 11/20
- Weight
- 75 kg
1524 mm overall assembly length with twin vertical outputs.
Technical information
| Item | FS-10 |
|---|---|
| Ratio | 1:1.82 |
| Teeth | 11/20 |
| Module | 6.5 |
| Power (HP) | 55 |
| Rated input | 540 RPM |
| Input / output description | 1 3/4" Z10 / 1 3/8" Z6 |
| Weight (N.W.) | 75 kg |
Application
Twin-output spreader drives for fertilizer and manure spreading implements.
All gear units are supplied with quenched gears and shafts for high surface hardness, quality oil seals and bearings, and spheroidal graphite iron housings for low noise and vibration. Every unit is inspected on our gearbox testing rig before despatch.

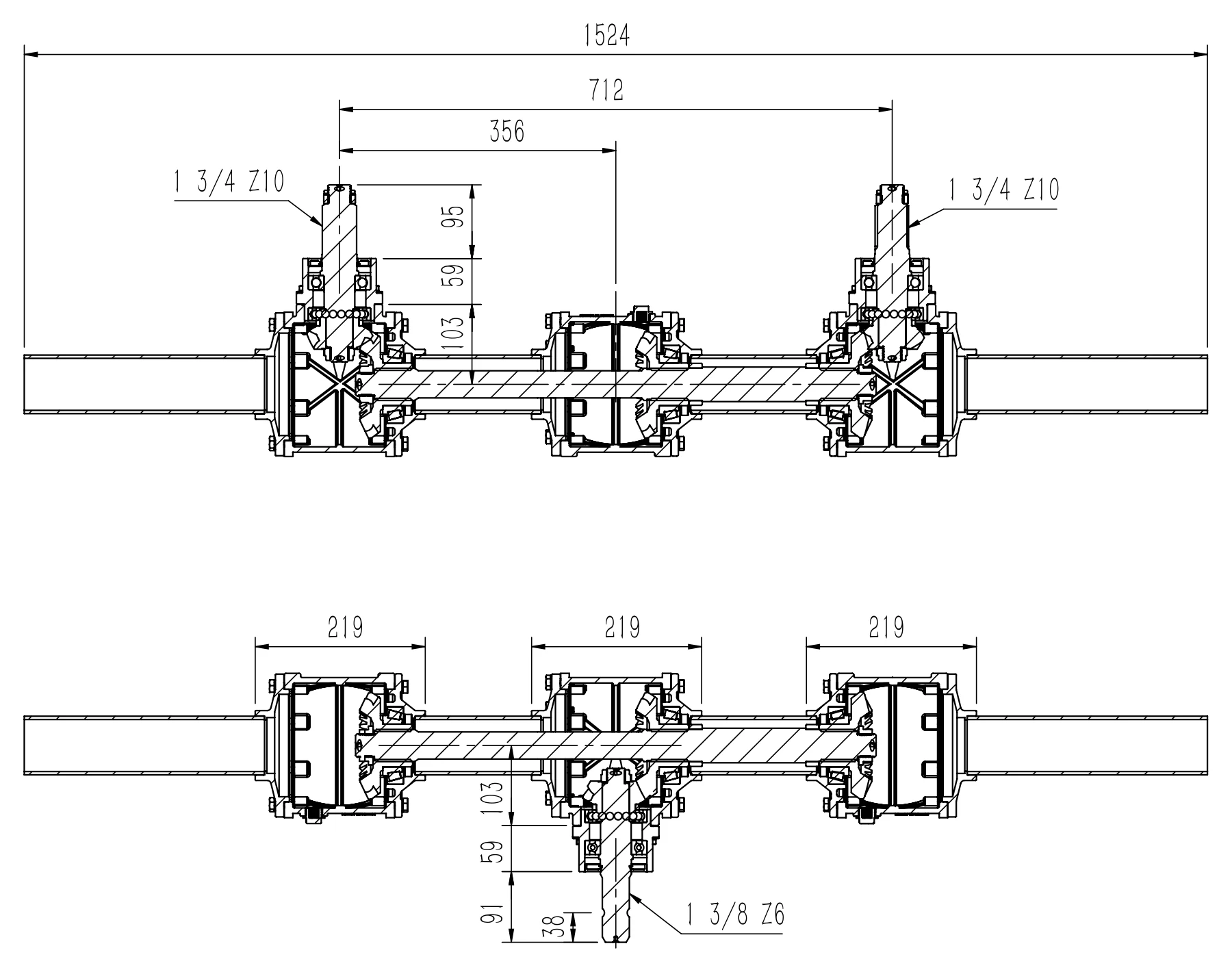

Cross-section shown for reference. Dimensions in millimetres. Not to scale when viewed on screen.
