Baler Gearbox
BA-1120
Baler Gearbox BA-1120
- Ratio
- 1:1.82
- Rated power
- 55 HP
- Teeth
- 11/20
- Weight
- 36–38 kg
Splined through-shaft. Weight range corresponds to different shaft lengths (L-1 / L-2).
Technical information
| Item | BA-1120 |
|---|---|
| Ratio | 1:1.82 |
| Teeth | 11/20 |
| Module | 6.5 |
| Power (HP) | 55 |
| Rated input | 540 RPM |
| Input / output description | 1 3/8" Z6 |
| Weight (N.W.) | 36–38 kg |
Application
Baler drive units with splined through-shafts for square and round balers.
All gear units are supplied with quenched gears and shafts for high surface hardness, quality oil seals and bearings, and spheroidal graphite iron housings for low noise and vibration. Every unit is inspected on our gearbox testing rig before despatch.

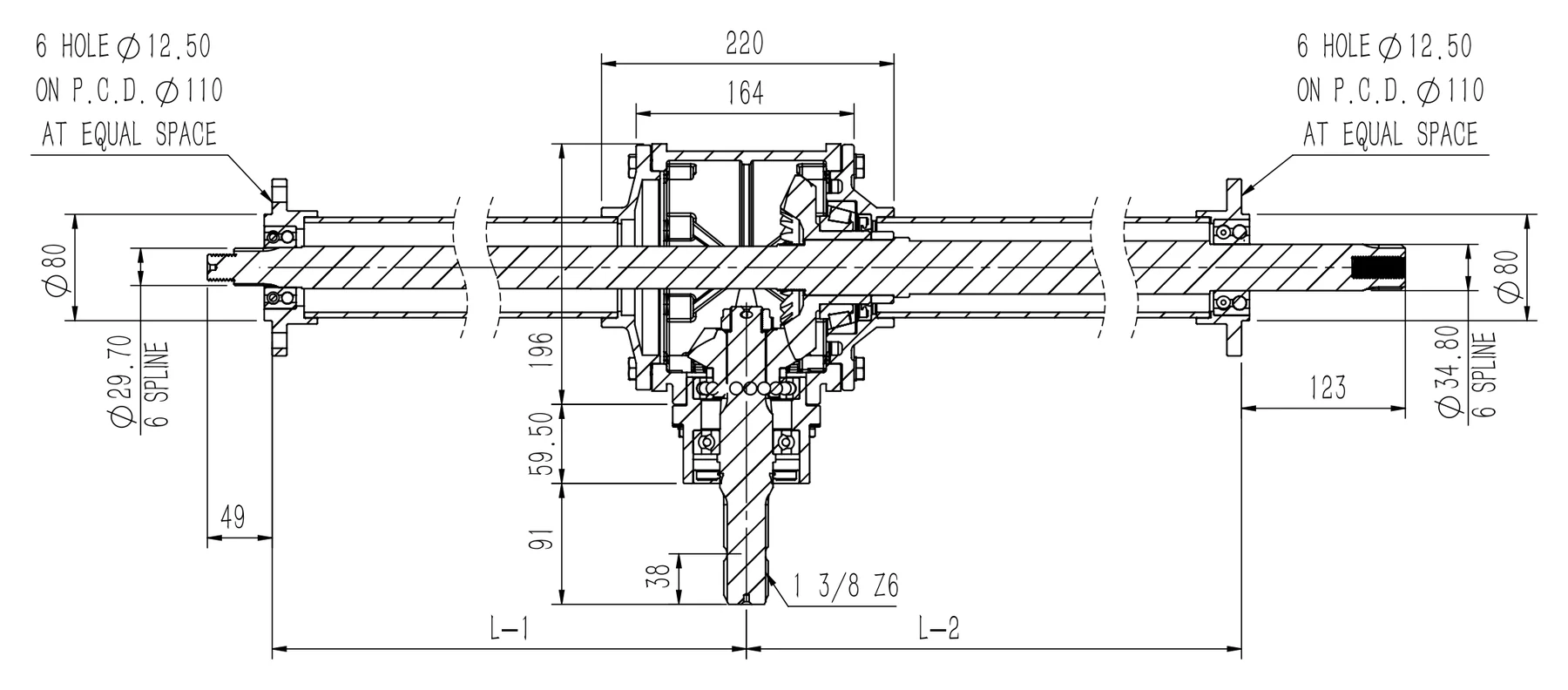

Cross-section shown for reference. Dimensions in millimetres. Not to scale when viewed on screen.
