Weeder Gearboxes
WG-1126M
Multi-Speed Weeder Gearbox WG-1126M
- Ratio
- 1:2.36
- Rated power
- 55 HP
- Teeth
- 11/26
- Weight
- 57 kg
Reduction gear sets of 16x19 / 17x18 / 15x20 / 13x22 / 12x23 available as an option in multi-speed gearboxes.
Technical information
| Item | WG-1126M |
|---|---|
| Ratio | 1:2.36 |
| Teeth | 11/26 |
| Module | 7 |
| Power (HP) | 55 |
| Rated input | 540 RPM |
| Input / output description | 1 3/8" Z6 |
| Weight (N.W.) | 57 kg |
Application
Power weeder transmissions including front-reduction and multi-speed variants.
All gear units are supplied with quenched gears and shafts for high surface hardness, quality oil seals and bearings, and spheroidal graphite iron housings for low noise and vibration. Every unit is inspected on our gearbox testing rig before despatch.

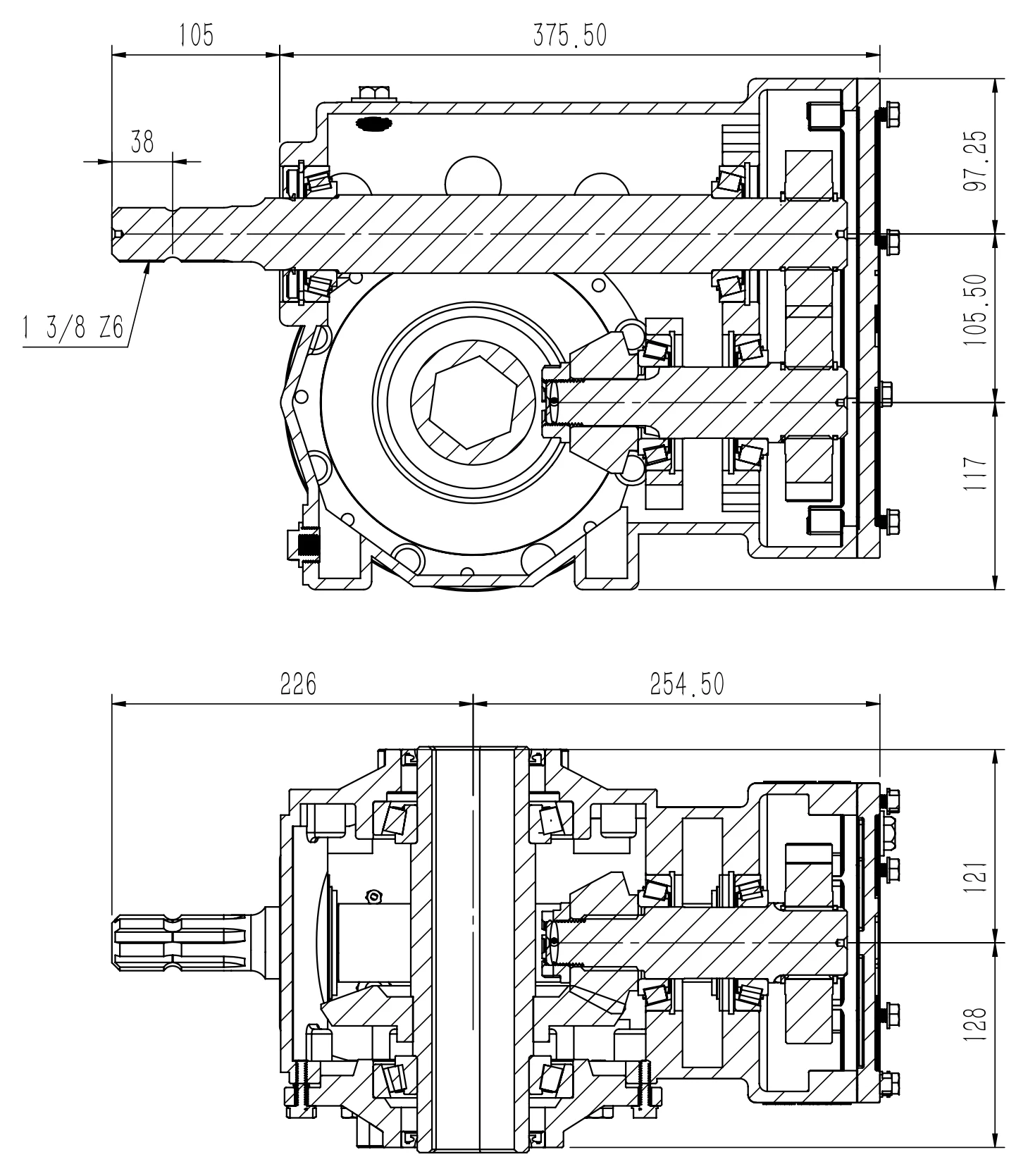

Cross-section shown for reference. Dimensions in millimetres. Not to scale when viewed on screen.
G.S Agro Pvt. Ltd. · Dhola Road, Dhuri-148024, Dist. Sangrur, Punjab, India · +91 98153 91389 ·
sales@gsagroindustries.com · www.gsagroindustries.com ·
ISO 9001:2015 (cert. 305024010911Q) ·
Technical data indicative and subject to change without notice.
